Highlight:

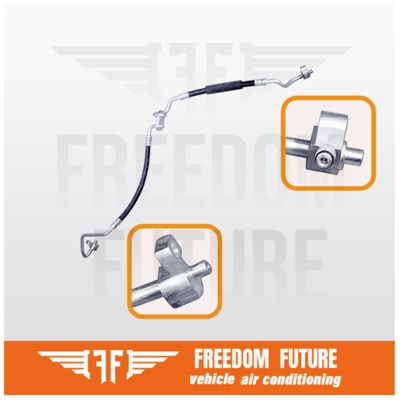

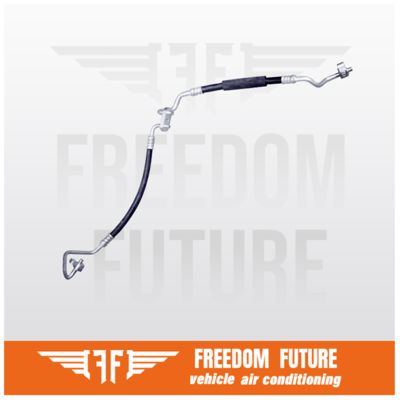

95081735 Twin A/C Pipeline Chevrolet Sonic 1.4 1.8L 13-15
Product Description:
Our automotive air conditioning piping system is mainly composed of the following core components:
aluminum pressure plate, aluminum pipe, rubber pipe, filling valve, sealing ring.
High-strength aluminum tube: Made of high-quality 6063 aluminum alloy, it has strong corrosion resistance
Professional hose: Multi-layer composite structure, the inner layer is made of nylon material, which effectively reduces the penetration of refrigerant
Precision joints: including pressure plates, nuts and other connectors to ensure the sealing of the system
Sealing accessories: O-rings, charging valves, etc. to ensure the airtightness of the system
Technical specifications:
Working pressure range: high pressure pipe ≥2.0MPa, low pressure pipe ≥1.0MPa
Temperature adaptability: stable operation in the full temperature range of -40°C to +140°C
Inner surface cleanliness: insoluble impurities ≤0.27g/m², maximum particles ≤200μm
Refrigerant compatibility: supports new generation environmentally friendly refrigerants such as R134a, R1234yf
Anti-explosion performance: explosion pressure ≥ 3 times the working pressure safety factor
Company Profile
We are a technology company specializing in the research and development, production and sales of automotive air conditioning pipe systems. We were established in 2004 and our factory is located in the core area of the automobile industry cluster in the Pearl River Delta of China.
Technical Strength
R&D Team: More than 80 professional technicians, including 15 senior engineers
Testing Capability: Equipped with complete material testing, performance testing and durability testing equipment
Certification Qualification: Passed ISO9001, ISO14001 and other system certifications
Support and Services:
Our A/C Pipes product technical support team is available to assist you with any questions you may have regarding the installation, maintenance, and troubleshooting of our product.
We also offer a variety of services to help ensure the optimal performance of your A/C Pipes, including:
- Installation support and guidance
- Maintenance and repair services
- Product testing and analysis
- Customization and design services
Our team of experienced professionals is dedicated to providing you with the highest level of customer service and support. Contact us today to learn more about our technical support and services for A/C Pipes.
